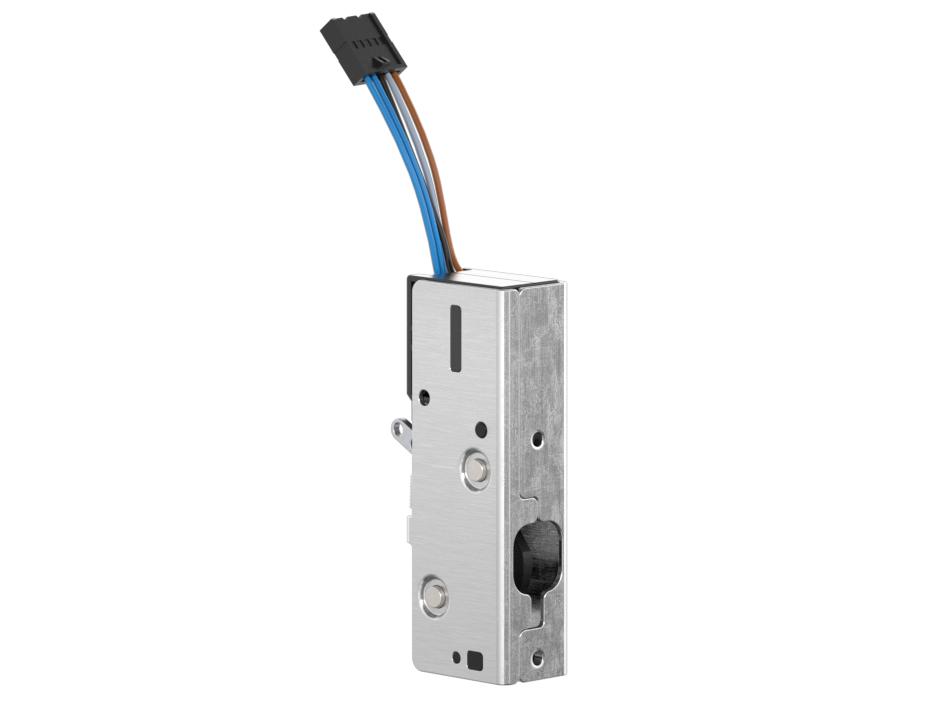

8442 HOPPO
Electromagnetic latch
- For heated appliances, medical equipment, and other technical applications
- Finger-safe in accordance with VDE requirements and RoHS-compliant
- Compact design with versatile mounting options
- Emergency release
- 12–24 V DC operation
- Electrically releasable against up to 200 N of counterpressure
- Static holding force of up to 1,000 N
- Adjustable strike
Heated applications
Details
Sometimes holding on matters just as much as letting go. Built on the same proven HOPPO concept, this electromagnetic latch combines compact dimensions with increased holding force for applications that demand a little more. It delivers reliable locking performance for heated appliances, medical equipment and other technical applications, while still allowing electrical opening under loads of up to 200 N. And should the power fail, the emergency release is always there when you need it.
Strong where it counts, flexible where it matters. The adjustable strike allows precise alignment, while the compact design makes installation straightforward even when space is limited. Designed for 12–24 V DC operation, HOPPO is ready for your application.
Material
Housing
Plastic, stainless steel
Latch
Stainless steel
Strike
Stainless steel
Other components
Zinc-plated steel, stainless steel, or plastic
